• Artículo: 2018419164834
  • Lugar de origen: Guangzhou, Guangdong, China (continental)
  • Material: Hierro
  • Tubo principal: Φ48x3mm
  • Duracion: 2m
  • Ancho: 2m
  • Altura: 8m
  • Capacidad de carga: 800kg
  • Forma de pago: Por TT, unión occidental o crédito de alibaba


           Layer Scaffolding Truss Layer Speaker Truss System

Sound Truss Frame Layer Truss

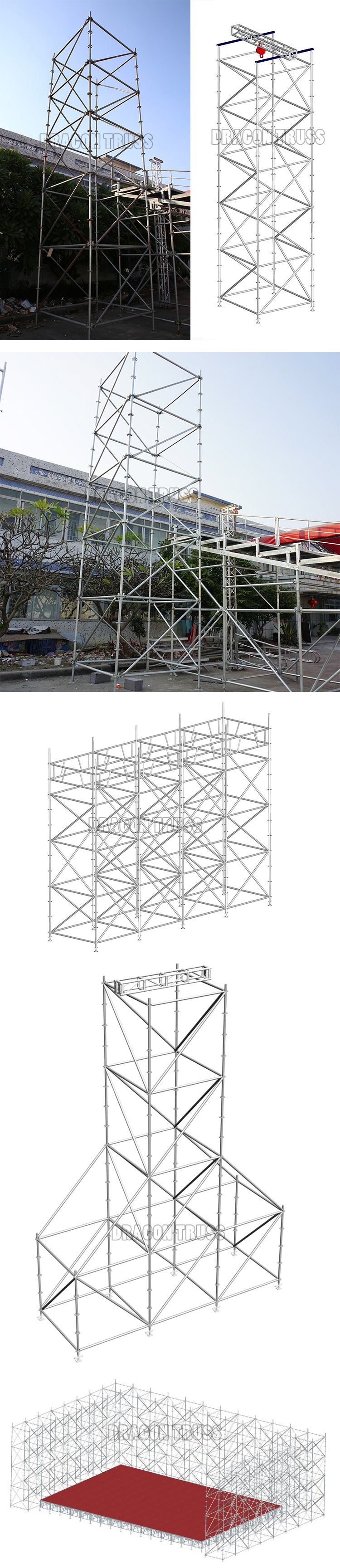

1.Layer truss consist of pillar ,horizontal pipe,diagonal pipe,adjustable base,joint pipe.

2.Its construction is simple,easy to use, credibility and economy cost .

3.Surface process:hot zinc galvanization or cold zinc galvanization.

4.It usually used in big outdoor shows and events.  stadiums, theatres, exhibition hall,  stadium grandstand awning,  two-way rain big column grid frame structure workshop, and other buildings from the roof.



part name lengh section
LR01 pillar 2m 48*3mm
LR02 horizontal pipe 2m 48*3mm
LR03 diagonal pipe 2.4m 48*2mm
LR04 adjustable base 250mm

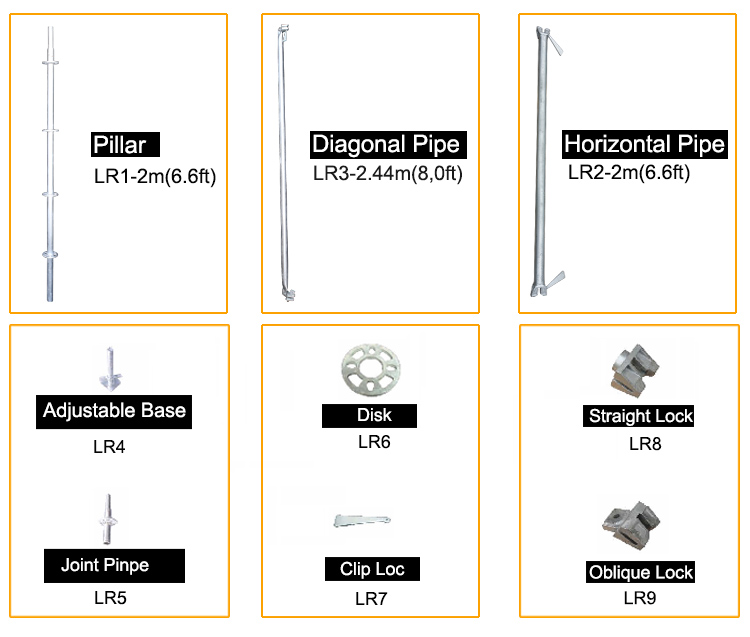

Accessories  for reference:






Layer truss is also called combined truss and consists of the horizontal pole, the vertical pole, the diagonal pipe and the adjustable base. It's very convenient and flexible to assemble .It is widely used for hanging audio device ,face lightings,side lightings and huge adverrisment.

Sound Truss Frame Layer Truss
