Sound Truss Frame Layer Truss



Specification:

1.Layer truss consist of pillar ,horizontal pipe,diagonal pipe,adjustable base,joint pipe.

2.Its construction is simple,easy to use, credibility and economy cost .

3.Surface process:hot zinc galvanization or cold zinc galvanization.

4.It usually used in big outdoor shows and events.  stadiums, theatres, exhibition hall,  stadium grandstand awning,  two-way rain big column grid frame structure workshop, and other buildings from the roof.





part	name	lengh	section
LR01	pillar	2m	48*3mm
LR02	horizontal pipe	2m	48*3mm
LR03	diagonal pipe	2.4m	48*2mm
LR04	adjustable base	250mm

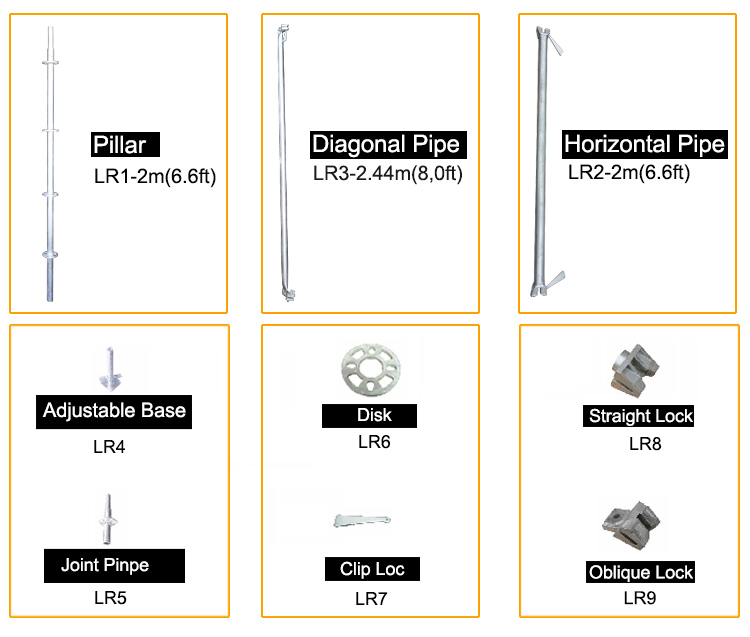

Accessories  for reference:

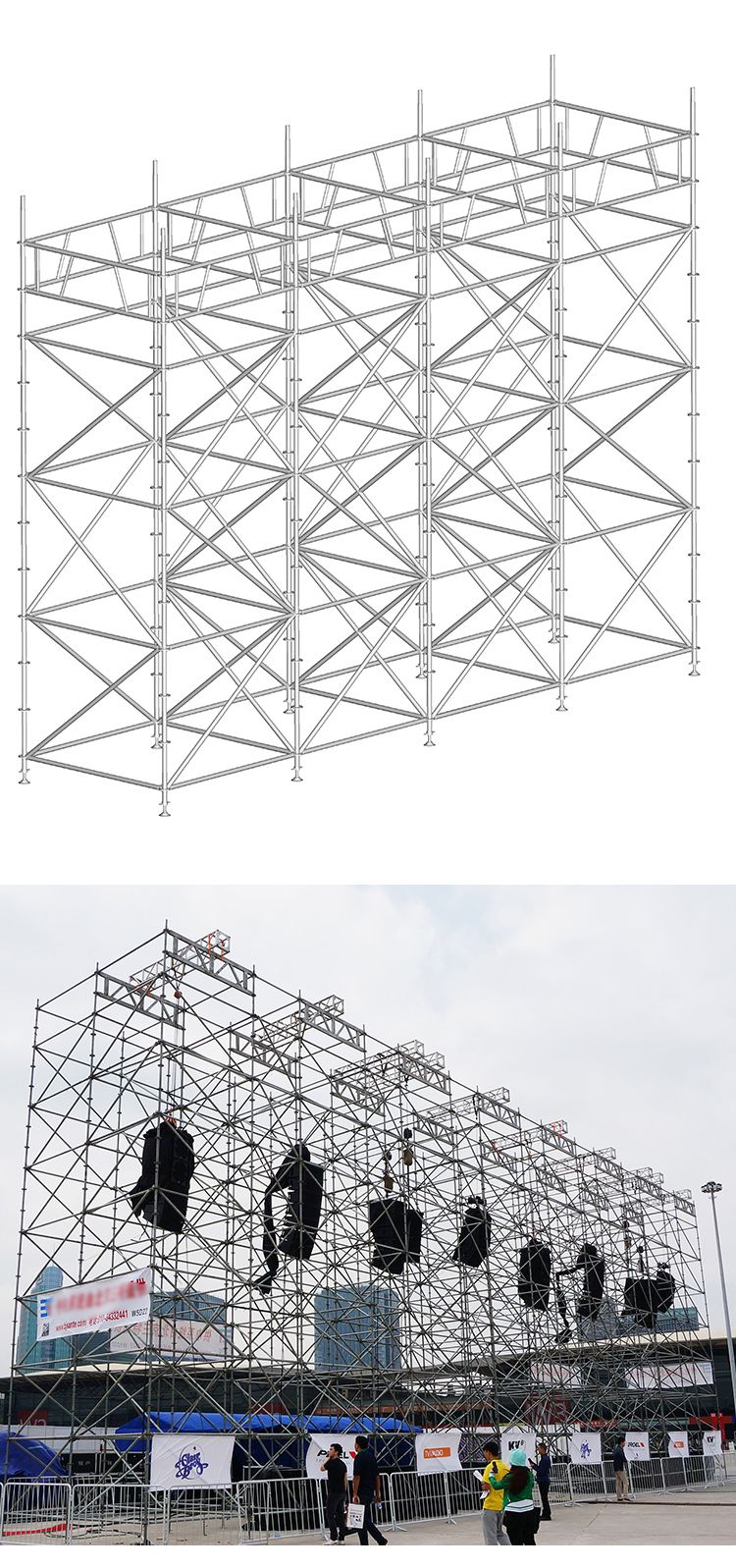

Layer truss is also called combined truss and consists of the horizontal pole, the vertical pole, the diagonal pipe and the adjustable base. It's very convenient and flexible to assemble .It is widely used for hanging audio device ,face lightings,side lightings and huge adverrisment.
