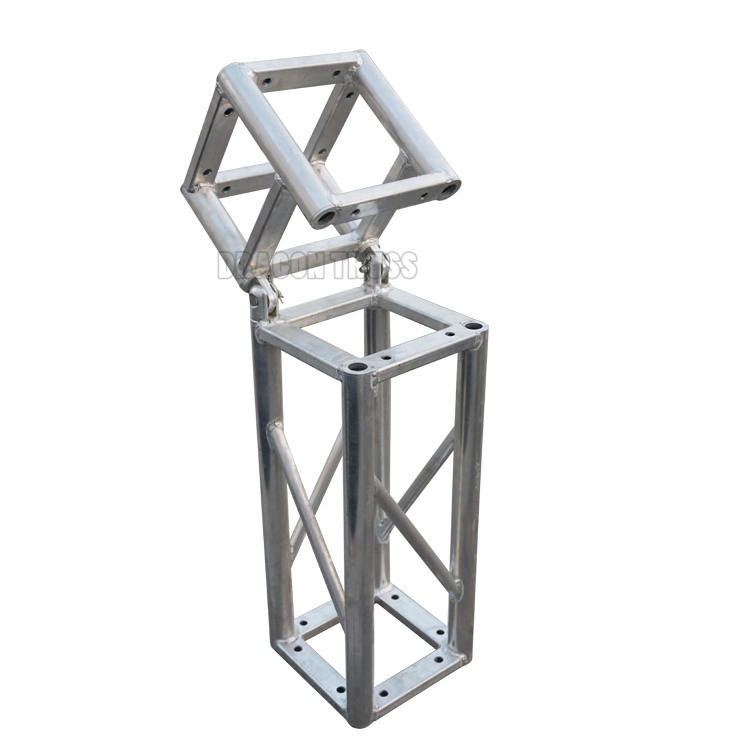

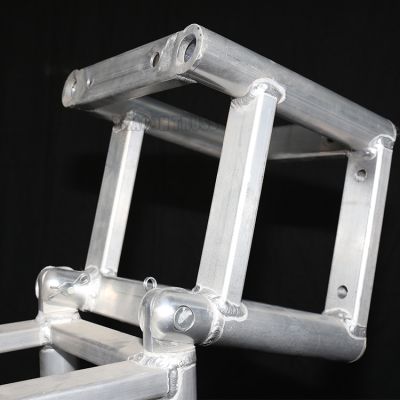

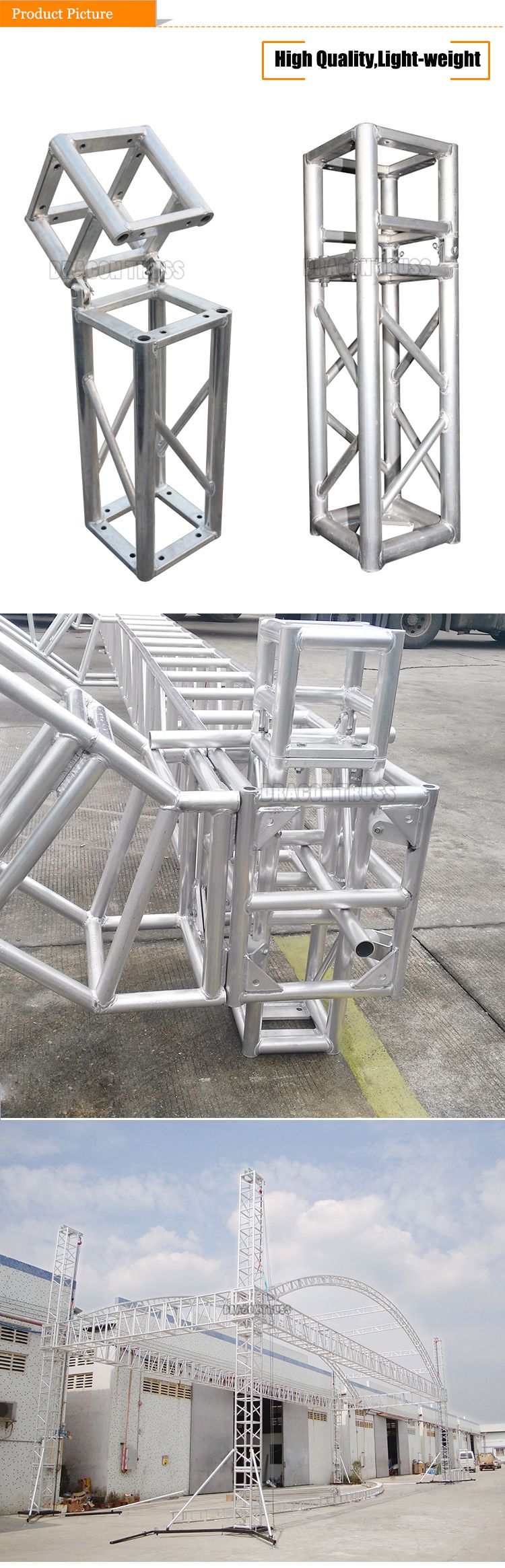

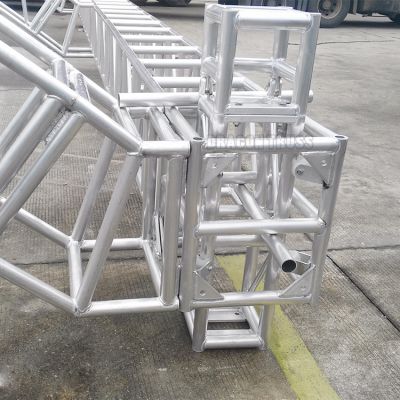

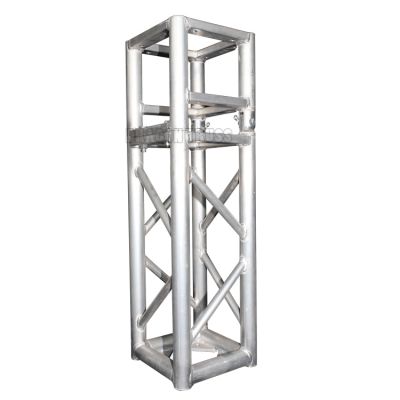

The bolt-type hinge section is an indispensable tool for professional event truss lifting towers. Manufactured from high-tensile 6082-T6 aluminum alloy, it provides a robust and secure pivot point that allows technicians to connect long tower sections on the ground. By using this hinge, the tower can be safely "tipped" from a horizontal to a vertical position, significantly reducing the labor and equipment required for high-altitude assembly.

The structural integrity of our bolt hinges is a key factor in our load capacity analysis, ensuring the pivot can withstand the dynamic stresses during the lifting phase. Once vertical, the hinge is locked using industrial-grade bolts, creating a rigid and seamless joint that integrates perfectly with various truss systems.

To ensure maximum safety and structural longevity, we recommend following our professional installation methodology. Its precision-welded plates and heavy-duty pivot pin are designed for long-term use in demanding touring environments. Whether you are building an outdoor concert roof or a massive LED screen support, this bolt hinge section provides the mechanical reliability and safety required for professional-grade stage rigging.

FAQ

1. Is a bolt hinge more secure than a spigot hinge for tall towers? Bolt hinges offer a very rigid connection once the locking bolts are tightened, which can be beneficial for high-load permanent or semi-permanent installations. Both systems are secure, but bolt hinges are often preferred by technicians who prioritize a vibration-resistant joint.

2. Can I use this hinge with different sizes of bolt truss? This hinge is designed for specific square truss dimensions. It is essential to match the bolt hole pattern of the hinge plate to your existing truss sections to ensure a safe and perfectly aligned connection.

3. Does the hinge require special tools for assembly? The hinge itself operates on a heavy-duty pivot pin, but you will need standard wrenches or impact drivers to secure the structural bolts once the tower is in its final vertical position. Always ensure bolts are tightened to the correct torque for maximum safety.
