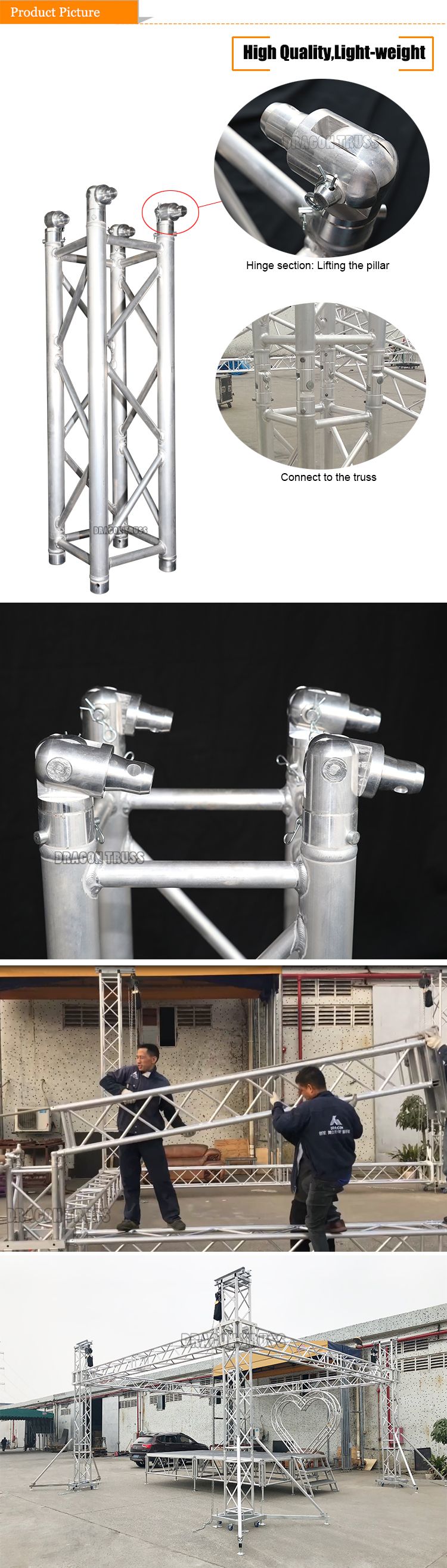

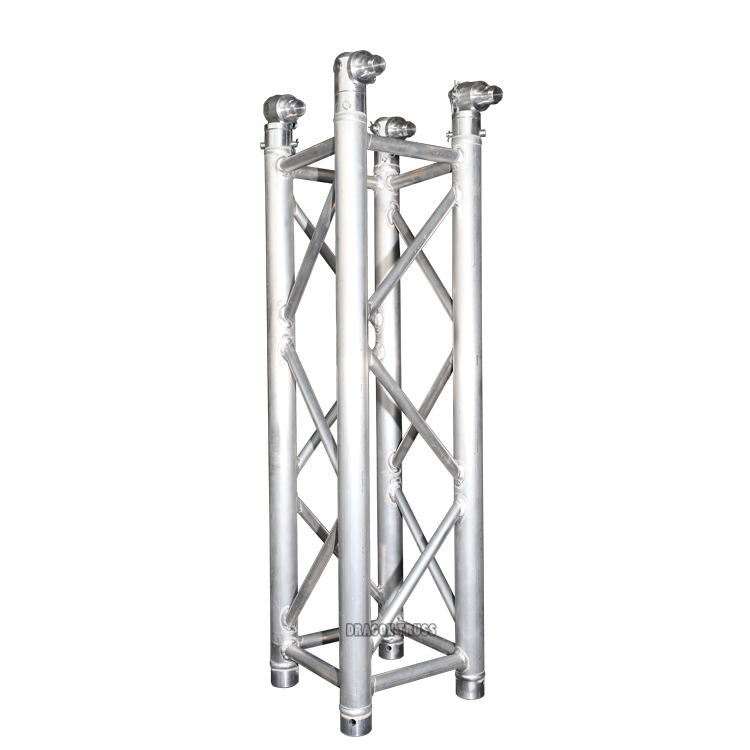

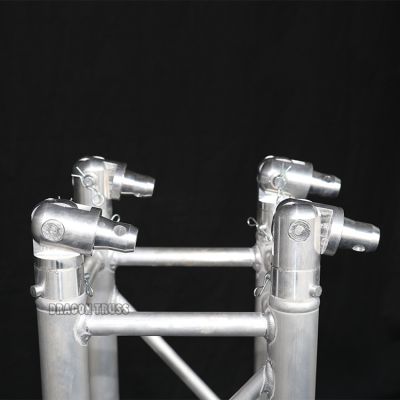

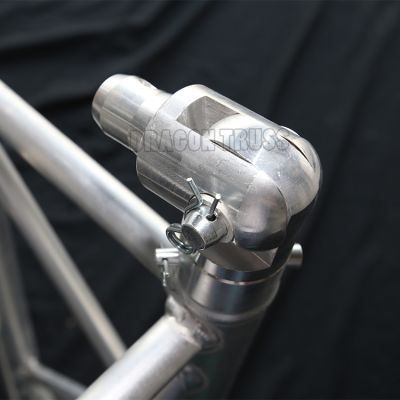

The hinge section is an indispensable tool for any modern event truss lifting system. Manufactured from high-grade 6082-T6 aluminum alloy, it provides a robust pivot point that allows technicians to connect the tower sections on the ground and then "tip" the tower into its vertical position. This significantly reduces the need for high-altitude work and enhances on-site efficiency.

The structural integrity of this hinge is a vital consideration in our load capacity analysis, ensuring that the pivot joint can handle the dynamic forces during the lifting phase. Once the tower is upright, the hinge is secured with high-strength pins, transforming it into a rigid structural element that integrates perfectly with various truss systems.

To ensure the highest level of stability and a smooth lifting process, we recommend following our professional installation methodology. Its precision-welded design and industrial finish ensure long-term durability for touring and rental fleets. Whether you are building an outdoor concert roof or a large indoor LED support, this hinge section provides the mechanical reliability required for professional-grade rigging and stage management.

FAQ

1. Is the hinge section designed to carry the full load of the tower once upright? Yes. While the hinge facilitates the lifting process, it is designed to be locked into place with safety pins. Once locked, it acts as a solid structural component capable of supporting the rated load of the tower system.

2. Can this hinge be used with both 290mm and 390mm truss? This specific hinge section is designed for standard tower dimensions. Please verify your tower's bolt or spigot pattern; we offer various hinge sizes to ensure total compatibility with your specific truss inventory.

3. Does the hinge require special maintenance? Because it is a moving part, we recommend regular inspection of the pivot pin and the locking holes for any signs of wear or deformation. Keeping the joint clean and lightly lubricated will ensure a smooth "tipping" operation for years to come.
